Installing power vent on existing heater - Possible but not recommended

It is not recommended to install a power vent on a B-vent or direct vent water heater. Doing such modification not only could be unsafe for the people who live in the house but also could void the manufacturer's warranty.

What alternatives do you have if you must change the B-vent or direct vent in your water heater?

If you need to replace the B-vent or direct vent in your water heater, there are several options you can consider. Some possible alternatives include:

Replace the vent with a similar type of vent: If you have a B-vent water heater, you can replace the vent with a new B-vent pipe. Similarly, if you have a direct vent water heater, you can replace the vent with a new direct vent pipe.

Convert to a different type of venting system: Depending on your specific circumstances, you may be able to convert your water heater to a different type of venting system. For example, you could potentially convert a B-vent water heater to a direct vent water heater or vice versa.

Install a power vent: If your water heater is not a sealed combustion unit, you may be able to install a power vent to improve the efficiency of the water heater. However, it is important to note that installing a power vent on a water heater that was not designed for it can be a safety hazard and may cause damage to the water heater.

It is important to carefully consider your options and consult with a professional before making any changes to the venting system of your water heater.

Power Vent Conversion Kit for Water Heaters: Compatibility and Safety Concerns for Existing Heaters

A power vent conversion kit is an add-on that can be installed on certain gas-fired water heaters to upgrade their venting system. Notably, not all water heaters can be converted to power venting. Those that are not designed to be compatible with power venting may not have the necessary components or space for the kit to be installed safely and effectively. Thus, it's crucial to carefully review the manufacturer's instructions and compatibility requirements before purchasing and installing the kit.

If a power vent conversion kit is compatible with a water heater, it can be a useful accessory for certain types of gas-fired water heaters. The kit typically consists of a motorized blower, a pressure switch, and a vent pipe, but the exact components may vary based on the specific kit and water heater model. The primary advantage of a power vent conversion kit is that it can more safely and efficiently remove combustion gases and other byproducts from the home than a natural draft system. It can also aid in preventing backdrafting, which can occur when exhaust gases are drawn back into the home rather than being vented outside.

However, a power vent conversion kit necessitates a source of electricity to power the motorized blower. If there is a power outage or an electrical issue, the water heater may not work properly. Moreover, although a power vent conversion kit can improve the efficiency and safety of a water heater, it may not always be necessary or cost-effective. For instance, if a water heater is already functioning well and venting correctly, a conversion kit may not provide significant benefits.

Atmospheric vent and direct vent water heaters are the two main types of water heaters that are suitable for a power vent conversion kit. An atmospheric vent water heater employs a natural draft system to draw air into the combustion chamber and vent exhaust gases out via a flue pipe. On the other hand, a direct vent water heater employs a sealed combustion system that draws in outside air for combustion and vents exhaust gases directly outside via a dedicated vent pipe.

It's critical to carefully consider compatibility and installation requirements before purchasing and installing a power vent conversion kit. The type of vent that is already present in the water heater will determine the type of power vent conversion kit that can be installed. If the water heater has an atmospheric vent, it will necessitate a power vent conversion kit that is compatible with an atmospheric vent system. If the water heater has a direct vent, it will require a power vent conversion kit that is compatible with a direct vent system.

It's worth noting that installing a power vent conversion kit should be done by a qualified professional who is familiar with local building codes and safety requirements. Improper installation can result in dangerous conditions such as carbon monoxide poisoning or fire hazards. Moreover, while a power vent conversion kit can help prevent backdrafting, it may not be the only solution for this issue. Other factors that can cause backdrafting include negative pressure in the home, inadequate venting, and obstructed vents. As a result, a qualified professional should be consulted to determine the best course of action for addressing backdrafting.

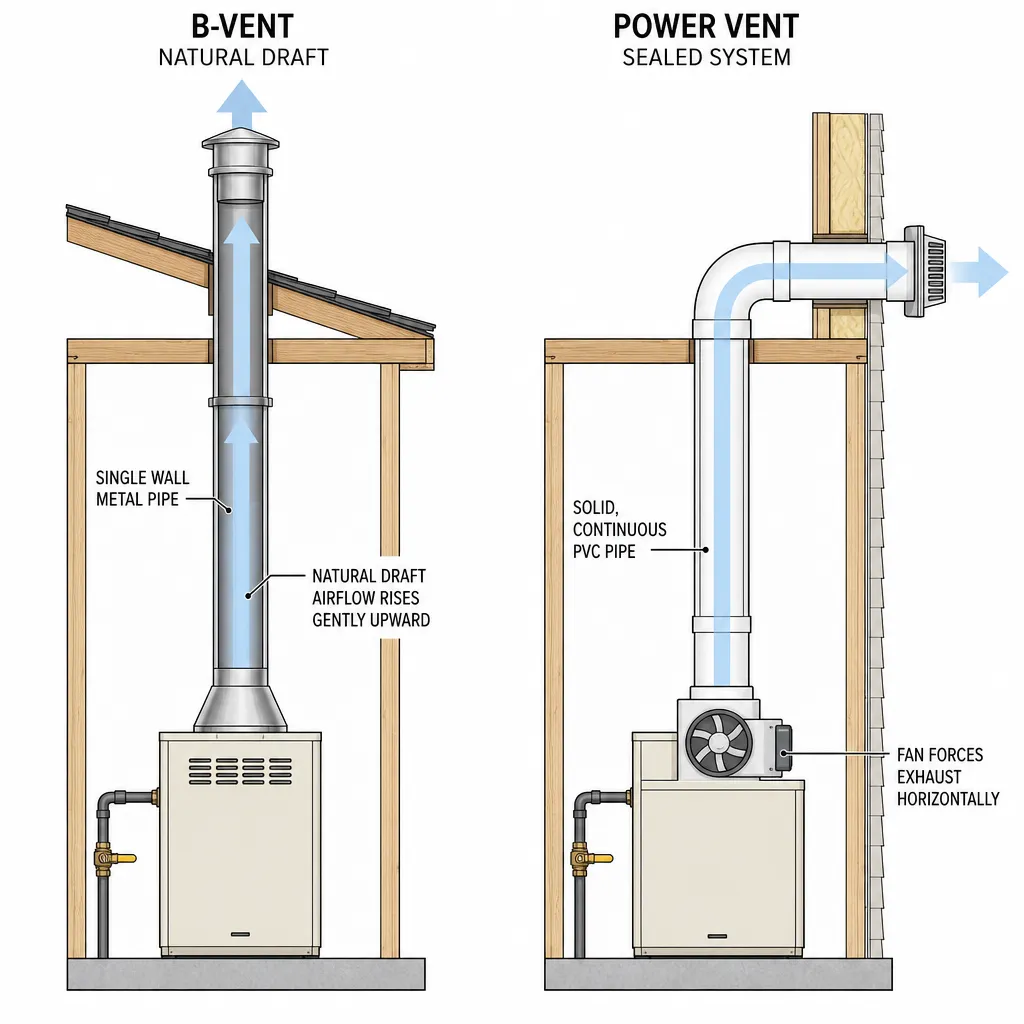

Why it is not safe to install a power vent on a direct vent or B-vent water heater?

Installing a power vent on a direct vent or B-vent water heater is generally not a safe option. These types of water heaters are designed to be ventilated using natural draft, which means that the buoyancy of the hot exhaust gases causes them to rise up through the vent and be expelled out of the home. However, a power vent uses a fan to force the exhaust gases out of the water heater, which can disrupt the natural draft process and create a backdraft. This can be a safety hazard and may also cause damage to the water heater.

Additionally, power vents are usually used on high-efficiency water heaters that have sealed combustion chambers. These water heaters do not have an open flue like traditional models, and instead use a sealed chamber to burn the fuel. Installing a power vent on a direct vent or B-vent water heater could cause it to operate inefficiently or even fail.

It's important to always follow the manufacturer's instructions when installing and venting a water heater, and to only use the type of venting system that is recommended for the specific model you have. This will help ensure the safety and proper functioning of your water heater.

Why venting is important for a gas water heater?

Proper venting of the water heater is very important because of two main reasons. It should be vented out By-products of combustion. It should have a proper fresh air supply as when gas burns it takes away oxygen from the surrounding environment. Therefore oxygen level of the room will be reduced. so your ventilating system 4water heater must be capable of venting out byproducts of combustion and also should allow coming fresh air from outside. if it is a naturally ventilated system like a B-vent or direct vent type water heater, then your room arrangement should be love naturally to come fresh air from outside

Different types of water heater venting

Standard Atmospheric Ventilation

Standard residential gas water heaters is the most popular type. To vent their exhaust, atmospheric gas water heaters use a metal duct vent. The venting can be used exclusively for the water heater, or it can be used in conjunction with other atmospheric vent appliances such as a furnace. Atmospheric venting is based on hot air rising. Venting should be either vertically or upwardly sloped so that hot exhaust rises through the venting and exits your home.

When installing an atmospheric vent for your water heater, it is important to make sure your home has a working vent system. If your home has a poor venting system, excess heat and fumes could be released into the atmosphere. We recommend that you hire a professional plumber to install.

Power Vent

Popular gas water heaters have an electric fan installed on top. This requires an electrical outlet near the heater. The exhaust venting allows the heat and exhaust to escape through the blower. You can vent vertically or horizontally. A longer line is available to address space and sizing concerns within your home. This makes power vent water heaters easier to install.

Because they use heat from exhaust heat to heat water, power vents are more efficient. They allow for PVC pipe, which is less costly than standard atmospheric vent metal and easier to install. For installation, we recommend that you contact a professional plumber.

Power Direct Vent

Power vents can be used when there is not enough air for combustion or the installation requires flexibility. Before you start this path, consult a professional plumber.

Power direct venting is similar to direct venting. A blower pulls in air from outside for combustion and funnels it to your water heater. The blower also releases the exhaust gases from combustion back into your home. A power direct vent water heater is similar to the power vent. However, it can be installed using PVC piping to lower installation costs. For installation, they will need an electrical outlet close to the heater.

Direct Ventilation

Direct vent gas heaters can be used when there is not enough ventilation in your home. Direct vent water heaters draw air from outside the home for combustion. Your water heater's exhaust gases and heat are then vented outside.

Direct vent water heaters use special coaxial venting. It has separate chambers to collect air and exhaust, all in one piece. The venting runs from your water heater to the side of the home. To prevent back-drafting inside your home, they pull and push air outside. These devices can reduce the risk of injury when you install a gas or propane tank water heater. We recommend that you hire a professional plumber to do the installation.

Concentric Ventilation

Concentric venting is any coaxial "pipe-in-pipe" venting system where both the exhaust gas and intake air are emitted through one assembly. This can be used to create an aesthetic installation by allowing only one wall or roof penetration.

You can use concentrated venting with many types of water heaters including power direct vent, direct vent and tankless. The material used for concentric venting will vary depending on the type of water heater.

For certain models, such as concentric vent tankless or direct vent water heaters, concentric venting can be used to complete the vent run (from the water heater to the outside of your home). Concentric vent terminations can be used for power direct vent tanks or tankless water heaters to achieve the same benefits as a single wall penetration or roof penetration, but with an aesthetic vent termination.

Separate intake and exhaust pipes are connected between the water heater, interior wall, and concentric piping is used for wall penetration and termination. We recommend that you hire a professional plumber to install.
