The essential components of a lawn irrigation sprinkler system include the control system, sprinkler heads, piping and valves, backflow preventer, water source with a filtration system, drainage system, and flush valves. These components work together to ensure efficient water distribution and maintain a healthy lawn.
Quick answer
A lawn irrigation sprinkler system is a network of controllers, valves, pipes, and sprinkler heads that delivers water to your landscape on a schedule you set. It's the difference between dragging a hose around every evening and letting the system do the work while you relax.
How it works
You're not just spraying water around. The system starts at your water source—usually your home's main supply or a well—where a backflow preventer makes sure nothing nasty siphons back into your drinking water. From there, water travels through mainline pipes to electrically operated zone valves. When the controller tells a valve to open, water rushes into lateral pipes and out through the sprinkler heads in that zone. Once the programmed run time ends, the controller shuts the valve and moves to the next zone. It's a simple cycle: pressurize, spray, shut off, repeat.
The controller is the brain. Even a basic timer lets you pick which days to water and how long each zone runs. More advanced controllers adjust for season, skip rain days, and let you tweak zones individually. The whole idea is to give your lawn exactly what it needs without wasting a drop.
Components or variations
You'll run into a handful of core parts on every system, but the choices you make for each one shape how well your lawn thrives.
Controllers range from simple mechanical timers to smart Wi‑Fi units that pull local weather data. A basic controller handles start times and durations. Smart controllers automatically adjust for heat waves or rain, which can cut your water bill noticeably.

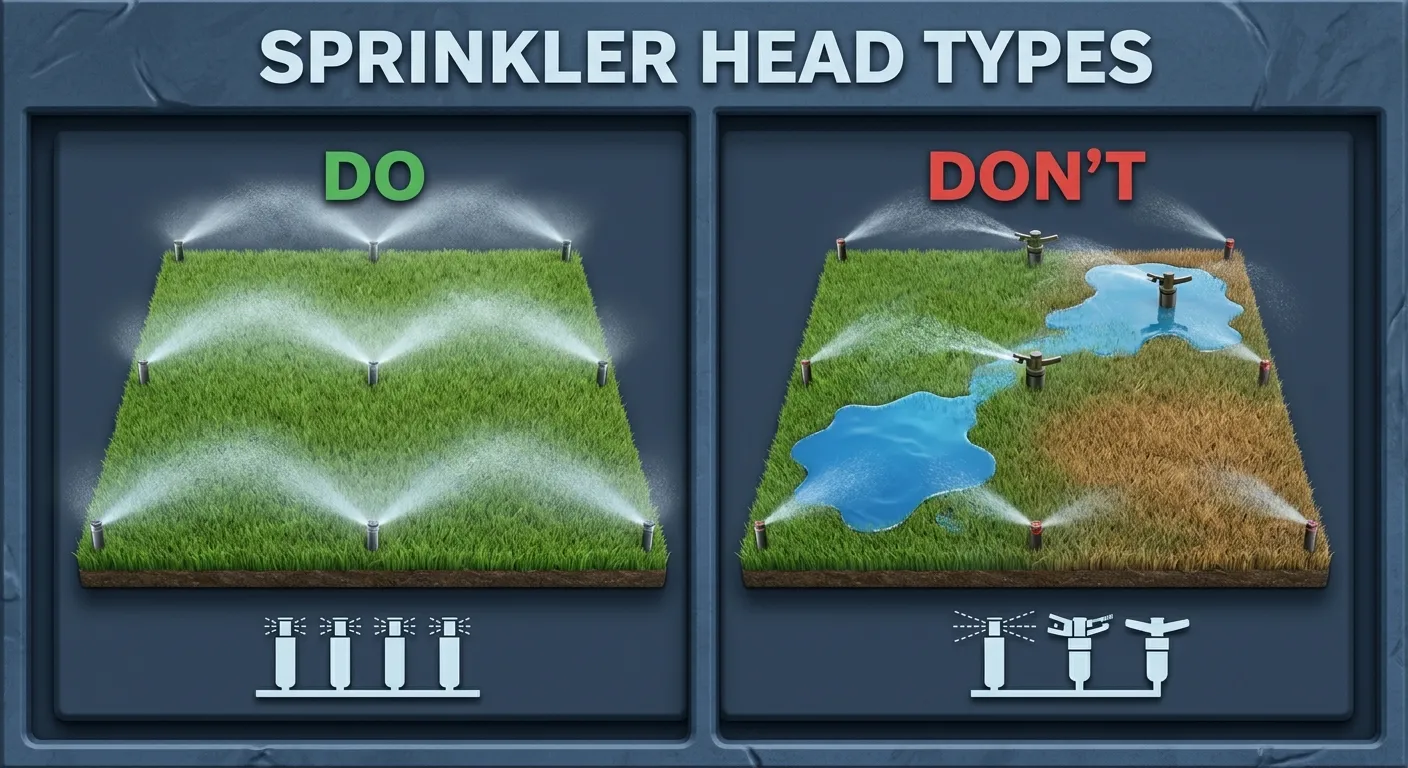

Sprinkler heads come in two main families. Fixed spray heads pop up and throw a steady fan of water—great for small, rectangular lawns or flower beds. Rotary heads turn a stream back and forth, covering large areas more slowly so the soil can absorb the water. Experienced plumbers warn against mixing spray and rotary heads on the same zone because they apply water at different rates; one area ends up swampy while another stays dry 1.
Valves sit underground in a valve box and open or close each zone. Most are electric, triggered by the controller, but you'll also see manual valves for isolation. Anti-siphon valves combine a valve and backflow preventer in one unit, but they must be installed at least six inches above the highest sprinkler head to work properly 2.
Piping is almost always PVC or polyethylene. Mainline pipes carry constant pressure from the source to the valves. Lateral pipes run from the valves to the heads and only see pressure when that zone is running.

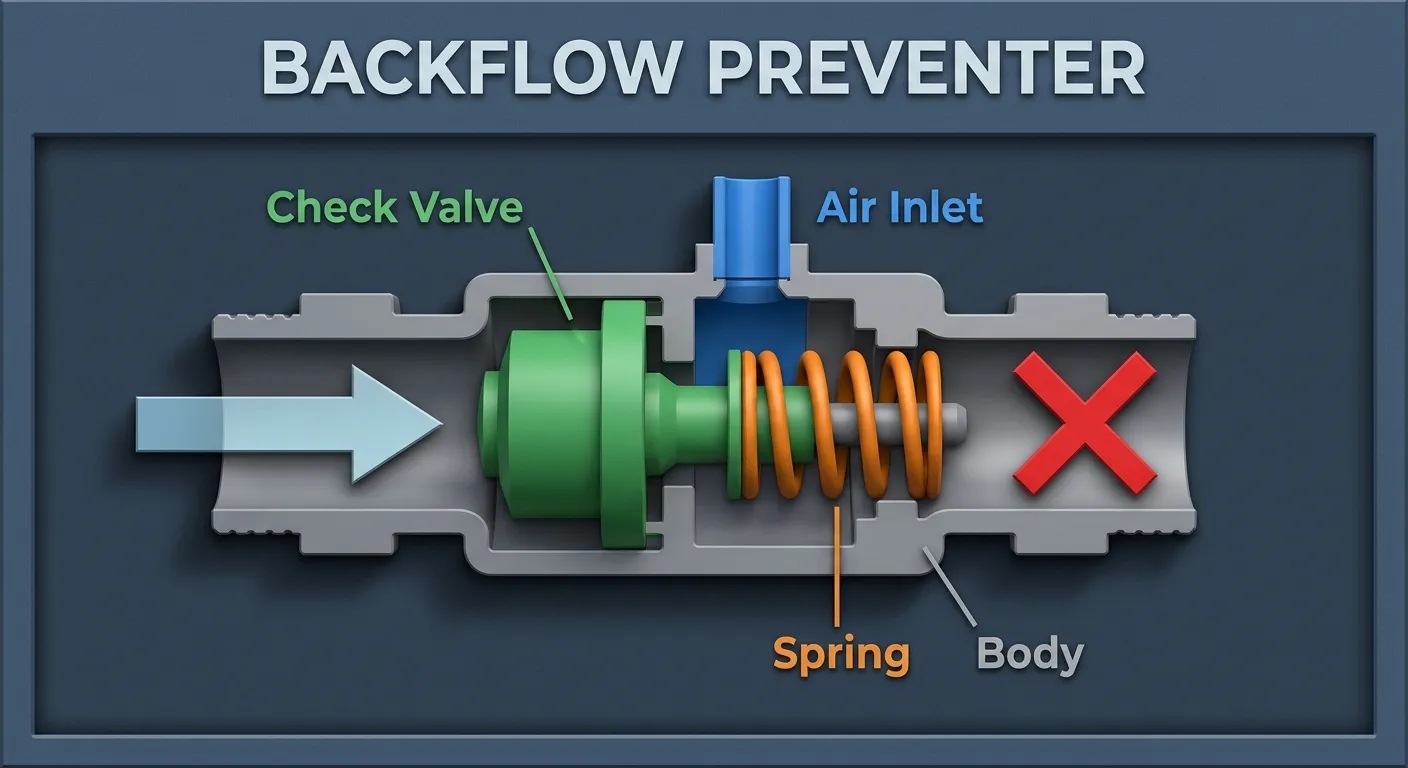

Backflow preventers are non-negotiable safety devices. The most common types are pressure vacuum breakers, reduced pressure zone assemblies, and double check valves. Local codes dictate which one you need, but the principle is the same: stop contaminated water from flowing backward into your house.
Filtration matters more than you'd think. If you're on well water or pulling from a pond, a filter keeps sand and gunk from clogging your heads. Even municipal water can carry sediment after main breaks. A simple Y-strainer or disc filter before the valves saves hours of head-cleaning later.
Drainage handles the water that doesn't soak in. French drains, catch basins, and sloped grading move excess water away so your lawn doesn't turn into a bog. Without it, you're inviting fungus, root rot, and a squishy mess.
Standards and codes
Plumbing codes treat your irrigation system as a potential cross-connection hazard, so backflow prevention is where the rules get strict. The International Plumbing Code and Uniform Plumbing Code both require a backflow preventer on any irrigation system connected to potable water. The specific device depends on the hazard level—sprinkler systems with chemical injectors or fertigation need a reduced pressure zone assembly, while a basic lawn system might get by with a pressure vacuum breaker 3.
Most jurisdictions require annual backflow testing by a certified tester. You'll get a report that goes to your water provider. Skip it and you risk a shut-off notice or a fine. Check with your local building department before you dig; permits are often required for new installations and major modifications.
When this matters for you
You're standing in the yard, hose in hand, watching brown patches spread despite your best efforts. That's the moment a sprinkler system stops being a luxury and starts looking like sanity. If your lawn is more than a postage stamp, a well-designed system pays for itself in water savings and reclaimed weekends.
It also matters when you're buying a house. A neglected system with missing heads, leaking valves, or no backflow preventer is a negotiation point. One homeowner reported finding an old system with no backflow device at all—fixing it before closing saved them from a potential contamination issue 1.
Seasonal changes matter too. In freezing climates, you'll need to blow out the lines with compressed air every fall. Skipping winterization is the fastest way to crack pipes and valves underground, and that repair bill stings 4.
Frequently Asked Questions
Do I really need a backflow preventer? Yes, and it's not optional. Without one, fertilizer, pesticides, and dirt can siphon back into your home's drinking water if pressure drops. Codes require it, and your health depends on it.
Can I mix different sprinkler head types on one zone? Working plumbers strongly advise against it. Spray heads dump water fast; rotary heads apply it slowly. Put them together and you'll overwater one area while underwatering another 1.
How often should I inspect my system? Run through each zone at least once a month during the watering season. Look for tilted or clogged heads, soggy spots that signal a leak, and valves that don't shut off completely. Oregon State Extension recommends a full system walkthrough in spring before heavy use begins 5.
What's the biggest mistake new homeowners make? Forgetting winterization. In cold regions, water left in pipes freezes and expands, splitting PVC and cracking brass valves. A compressor blowout in late fall is cheap insurance compared to digging up your yard in spring 4.
How do I know if my filtration system is working? Check for reduced pressure at the heads or dry spots in a zone. Pull a few heads and look for grit in the screens. Clean or replace filter elements at the start of each season and after any main line work.
