What is an Atmospheric Gas Water Heater?

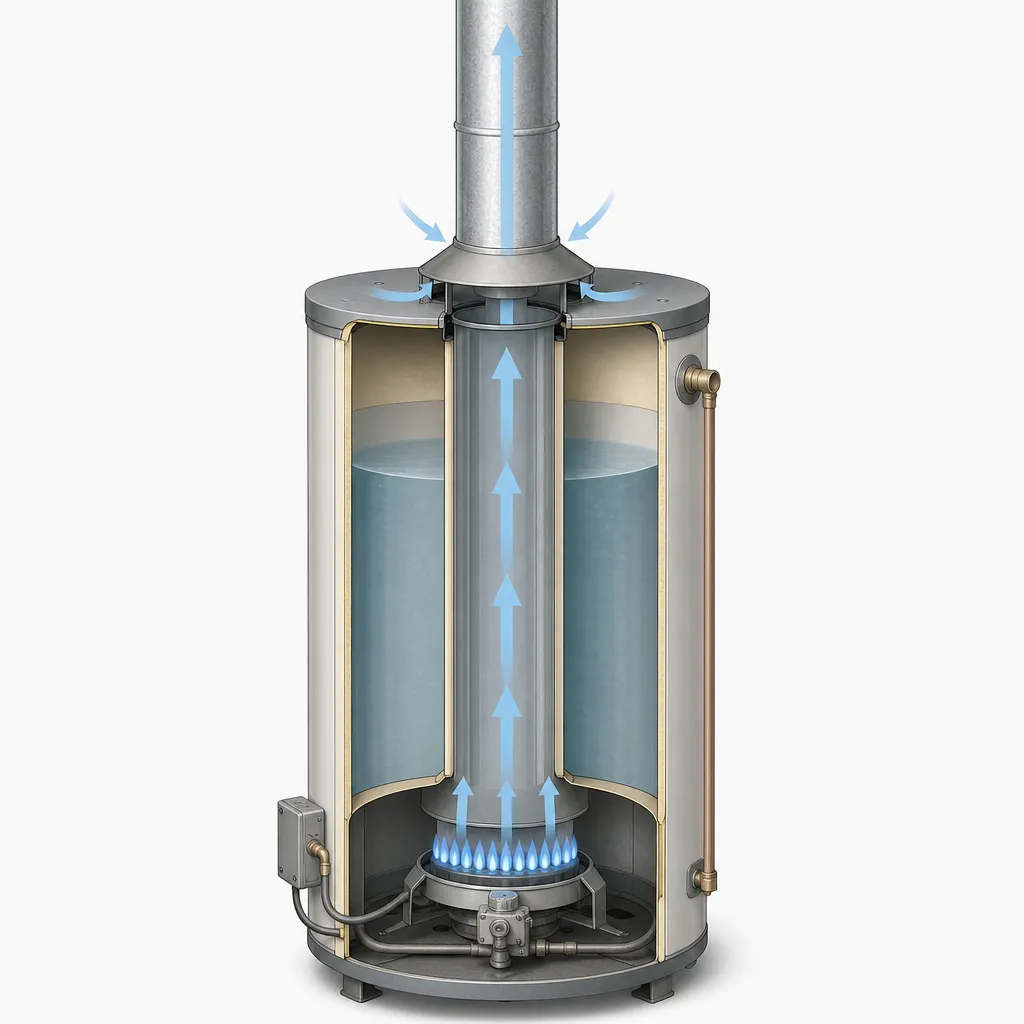

An atmospheric gas water heater is a gas-powered storage-tank water heater that uses natural gas as a cheap source of energy. This type of water heater differs from other gas water heaters by venting the exhaust out of your house through a large metal draft pipe at the top of the tank. Proper venting is critical for atmospheric water heaters, and mechanical codes specify exact requirements for vent sizing, materials, and termination to ensure safe operation. This way, the air in the atmosphere is naturally drawn into the vent, making it an "atmospheric" water heater.
Atmospheric water heaters rely on natural draft for venting and are known for their longevity compared to newer models. But experienced plumbers are blunt: "No atmospheric vent water heater made today is going to last half as long as that tank." One homeowner even reported that their old tank "will continue to last the life of five new water heaters" 1. So if you've got an older unit still chugging along, you're in good company—just know that modern replacements won't match that lifespan.
How Does an Atmospheric Gas Water Heater Work?
The atmospheric gas water heater operates by burning natural gas to heat up the water in the tank. The cold water from the water source enters the tank through the dip tube, preventing dilution of the hot water already in the tank. The hot water rises to the top of the tank and exits through the hot water pipe, distributing the hot water to your house. The burner is connected to a gas line equipped with a gas shutoff valve, and the gas regulator has a thermostat that you can control to adjust the water temperature.
These heaters need plenty of combustion air to work safely. If you notice exhaust spilling back into the room, the culprit is often a starved air supply. One working plumber saw a backdraft vanish the moment a homeowner opened a basement window — a clear sign the heater was choking for air 2. So if your unit acts up, try cracking a window before you call for help.
How to Identify an Atmospheric Gas Water Heater?

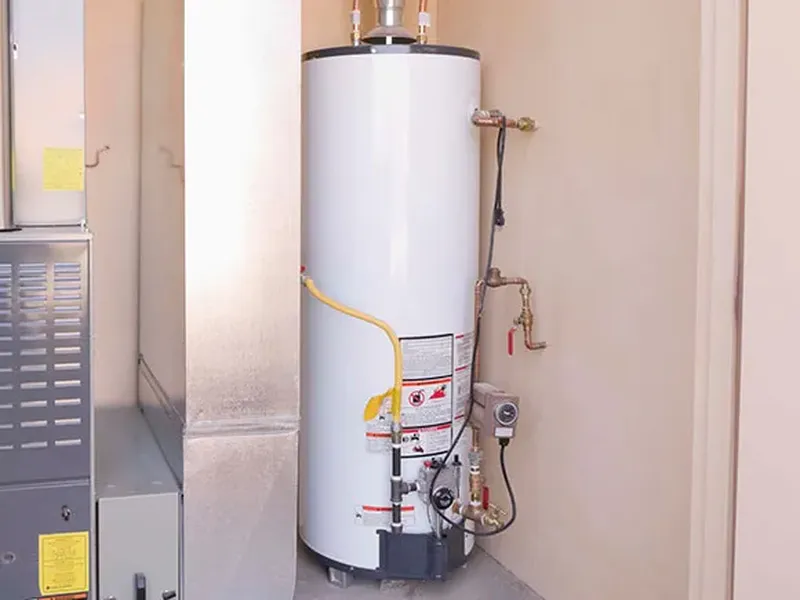

To determine if you have an atmospheric gas water heater, check for a yellow or black gas line with a gas shutoff valve running to the burner and a large metal draft pipe on top of the tank. That metal pipe is a Type B vent—it’s required because the exhaust is too hot for PVC, and you can’t side-vent an atmospheric unit 3. The gap between the vent pipe and the tank is where room air gets pulled in to support combustion.
Parts of a Gas Water Heater
Understanding the important parts of a gas water heater can help you get to know your atmospheric water heater. The tank has "water in-water out" functionality, and cold water enters the tank from the cold water pipe and is sent down through the dip tube to the bottom of the tank. The tank has 2-3 inches of insulation and is lined with glass to protect the lining of the tank from corrosion. An expansion tank regulates the pressure in your water heater and water pipe system, and a pressure relief valve helps regulate pressure and hot air within the tank.
Every gas water heater must have a draft hood unless it has an approved built-in draft hood, and the relief opening of the draft hood must not be obstructed 4. The draft hood must be unobstructed and the vent pipe must match the draft hood outlet size; a separate venting system is recommended 5.
In some jurisdictions like New York City, thermal safety spill switches are required on barometric-draft regulators and other dilution air appurtenances 6. These spill switches should be mounted on the bottom edge of the draft hood, at least 3/4 inch below the hood opening, without contacting the metal 7.
Benefits of Using an Atmospheric Gas Water Heater
An atmospheric gas water heater is cheaper than most water heaters, and with proper maintenance, it should last you anywhere from 10-14 years. It's also more cost-effective than electric water heater units, and while tankless water heaters may save you roughly $100 a year in monthly costs, the units themselves are more expensive than tank water heaters. One thing you'll appreciate: these heaters don't need electricity to run, so you'll still have hot water during a power outage. Just keep in mind that because they pull combustion air from the room, you need to make sure your utility closet or basement meets ventilation standards like ASHRAE 62.2 to keep your indoor air safe 8.
Maintenance Tips for Your Atmospheric Gas Water Heater
Regular maintenance keeps your water heater running safely and efficiently. You'll want to check the pressure relief valve and drainage valve on the side of the tank to make sure they're working correctly. The ICC recommends checking the T&P relief valve every six months and flushing the tank every six months, especially if you live in a hard water area 9. Flush the tank annually to remove sediment buildup, and check the anode rod every few years for corrosion. Ensure venting complies with local codes for safe operation.
If your water heater shares a chimney with other appliances, BPI standards require spillage and draft tests for all natural draft water heaters, starting with the appliance that has the smallest Btu input rating 10. If CO levels in vent gases exceed 100 ppm and the appliance spills under natural conditions, the problem must be repaired before proceeding with other measures 10.
For earthquake safety, water heaters must be strapped in at least two places—upper and lower one-third of the tank—to resist motion during an earthquake 11.
Frequently Asked Questions
Why does exhaust spill back into the room, and is it dangerous? Spillage happens when the draft can't pull combustion gases up the vent—often because of a blocked flue, negative air pressure from exhaust fans, or a cold chimney that won't start drafting. It's absolutely dangerous because those gases contain carbon monoxide, so you'll want to check the vent connector for blockages and make sure you have enough combustion air coming into the space 1. If you see melted plastic grommets on top of the heater or soot around the draft hood, shut it down and call a pro—those are signs the spillage has been happening for a while 5.
Can I switch an atmospheric unit to PVC or side venting? No, you can't just slap a power venter on an atmospheric tank—the burner and flue design are completely different, and the tank isn't built for positive pressure or condensing exhaust 3. If you want to free up the chimney or vent out a side wall, you'll need to replace the whole unit with a direct-vent or power-vent model that's listed for that setup. Some homeowners try adding a draft inducer, but that's a code violation and can make backdrafting worse if the venting isn't sized right.
How much longer will an old atmospheric tank last versus a modern replacement? An old tank that's been maintained might chug along for 15–20 years, but a new one typically gives you 8–12 years before the lining fails—modern tanks have thinner glass linings and less metal, so they don't have the same longevity 1. That said, the new one will be more efficient and safer, with better combustion controls and a sealed combustion chamber on many models. If your old tank is past 15 years, you're on borrowed time, and a leak could dump 40+ gallons into your home.

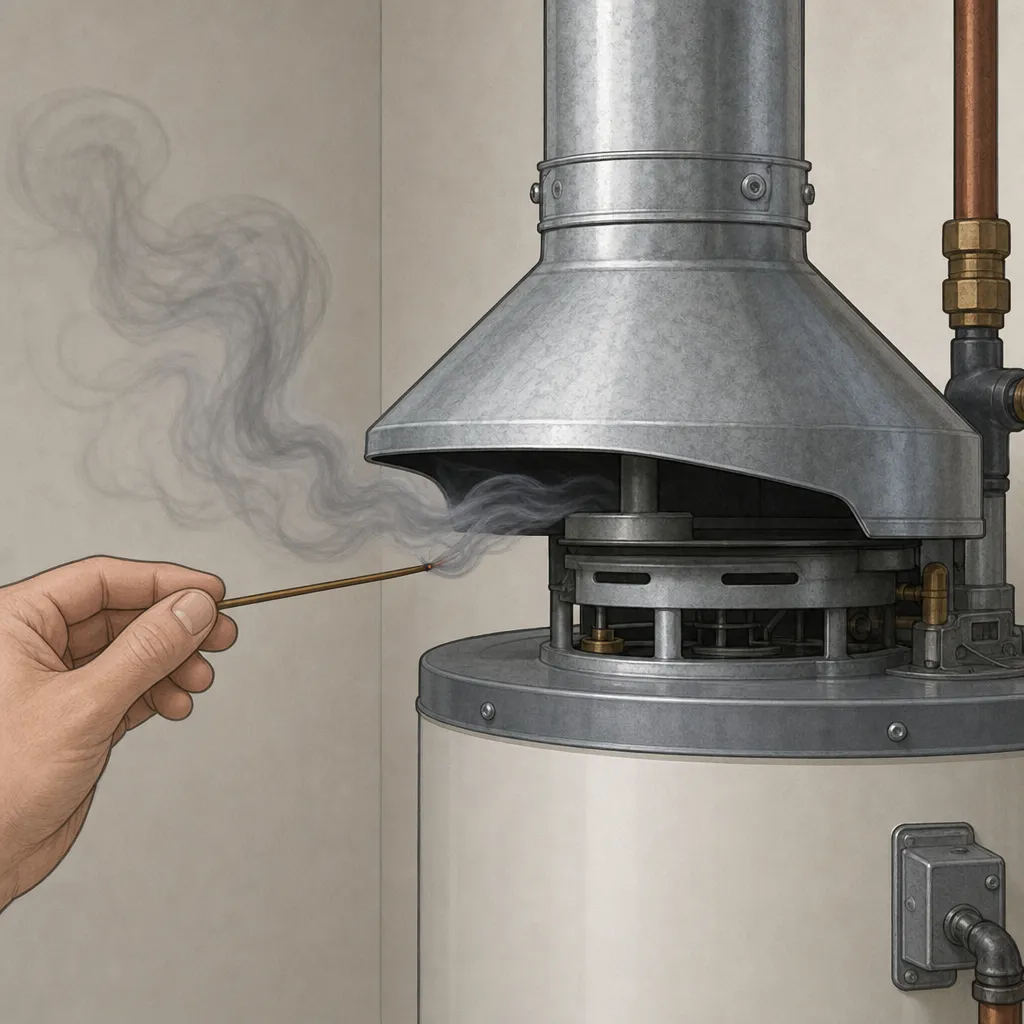

Do I need a draft-hood spillage switch, and how is a backdraft confirmed? If your water heater is in a living space or near bedrooms, a spillage switch is a smart safety upgrade—it shuts off the gas if exhaust backs up into the room, and some codes now require them on atmospheric units 6. To confirm a backdraft, hold a smoke pen or a lit incense stick near the draft hood relief opening while the burner is running; if the smoke gets pulled into the hood, you're drafting fine, but if it pushes out into the room, you've got a backdraft that needs immediate attention 10. A mirror held near the opening can also fog up if spillage is occurring, but smoke is more reliable.
Conclusion: Is an Atmospheric Gas Water Heater Right for You?
Now that you understand how atmospheric gas water heaters work, you can decide if one fits your home. If you're after a cost-effective, long-lasting water heating solution that runs on natural gas, it might be the right choice. With proper maintenance, you'll enjoy hot water for years to come.
